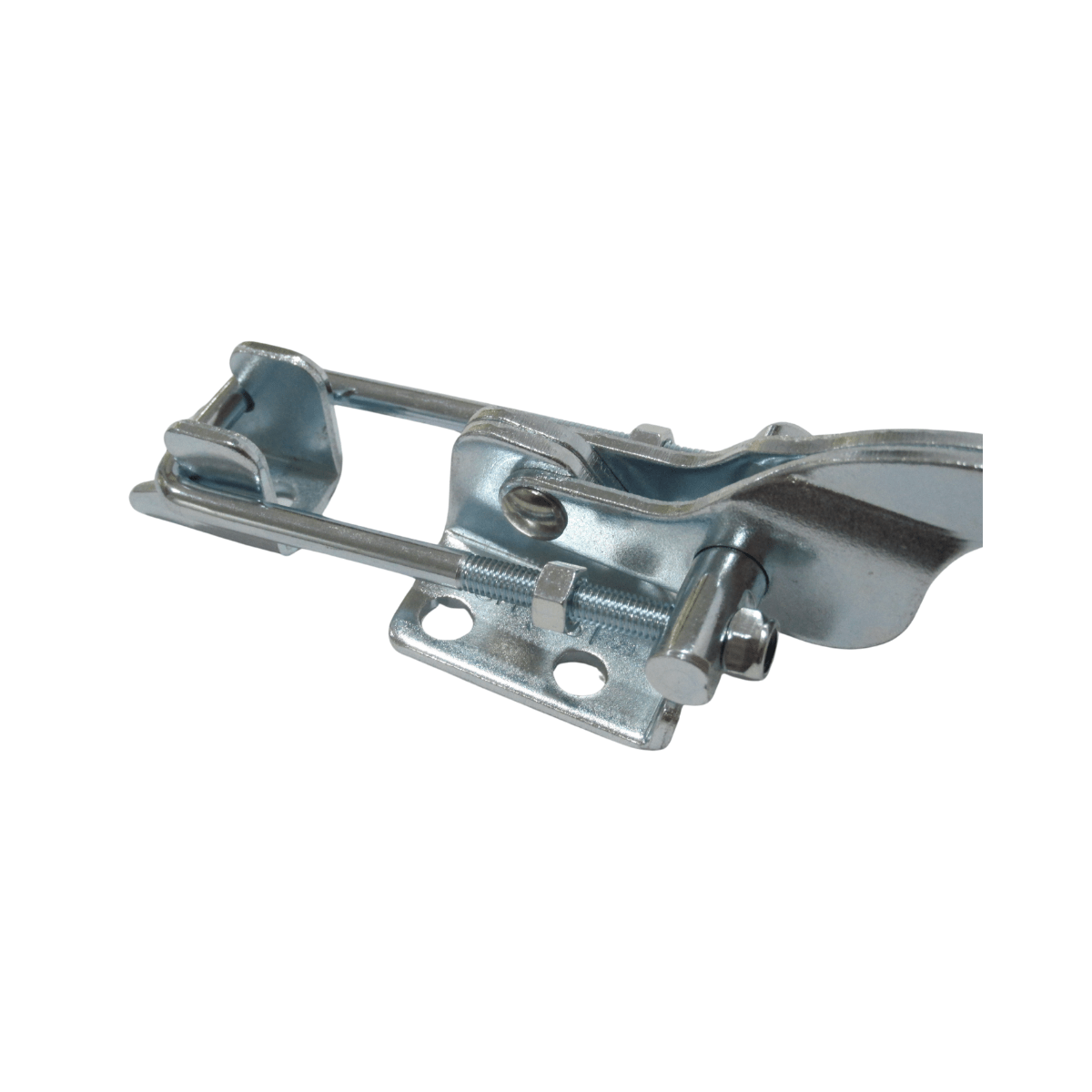

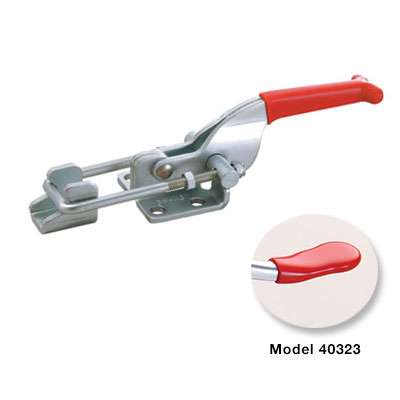

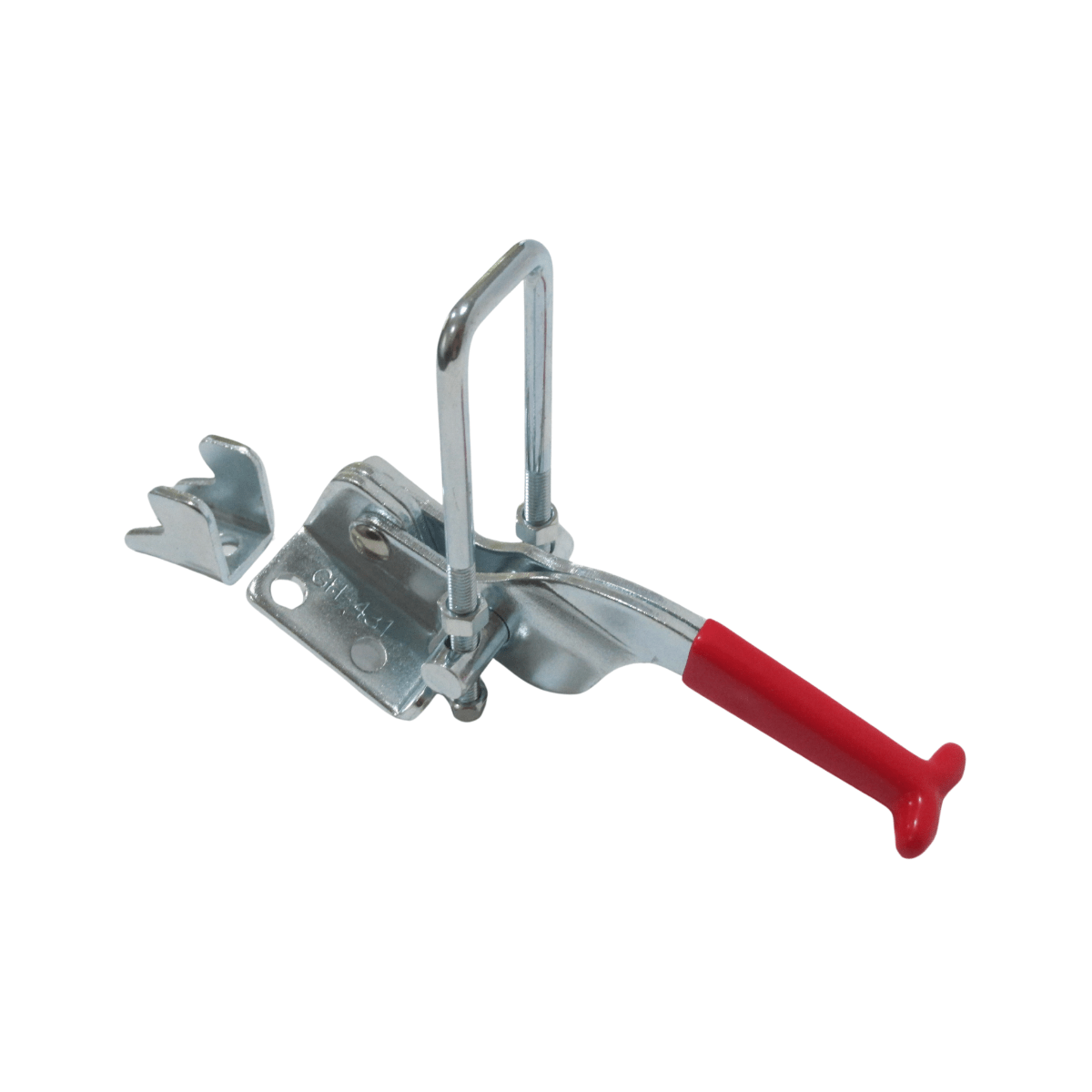

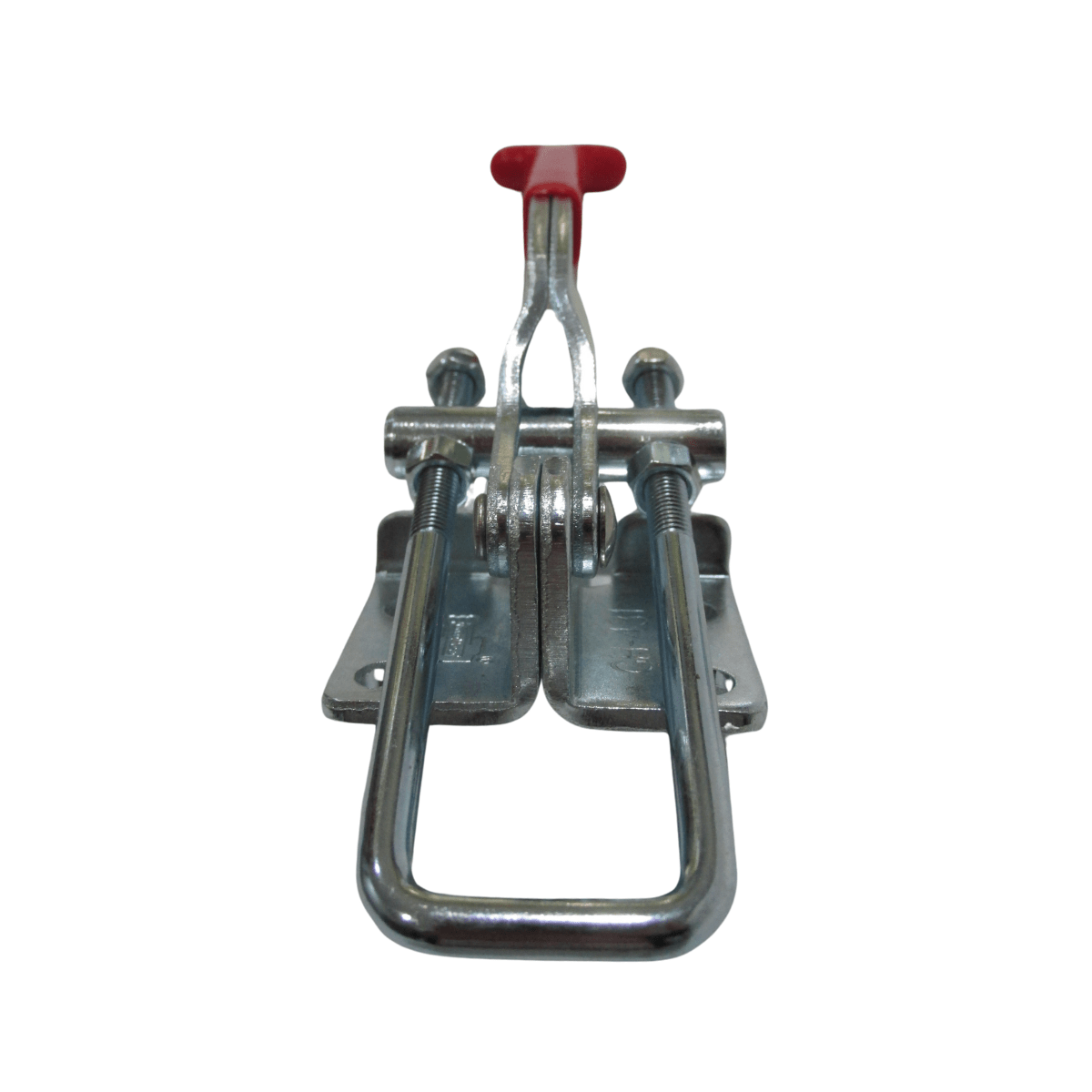

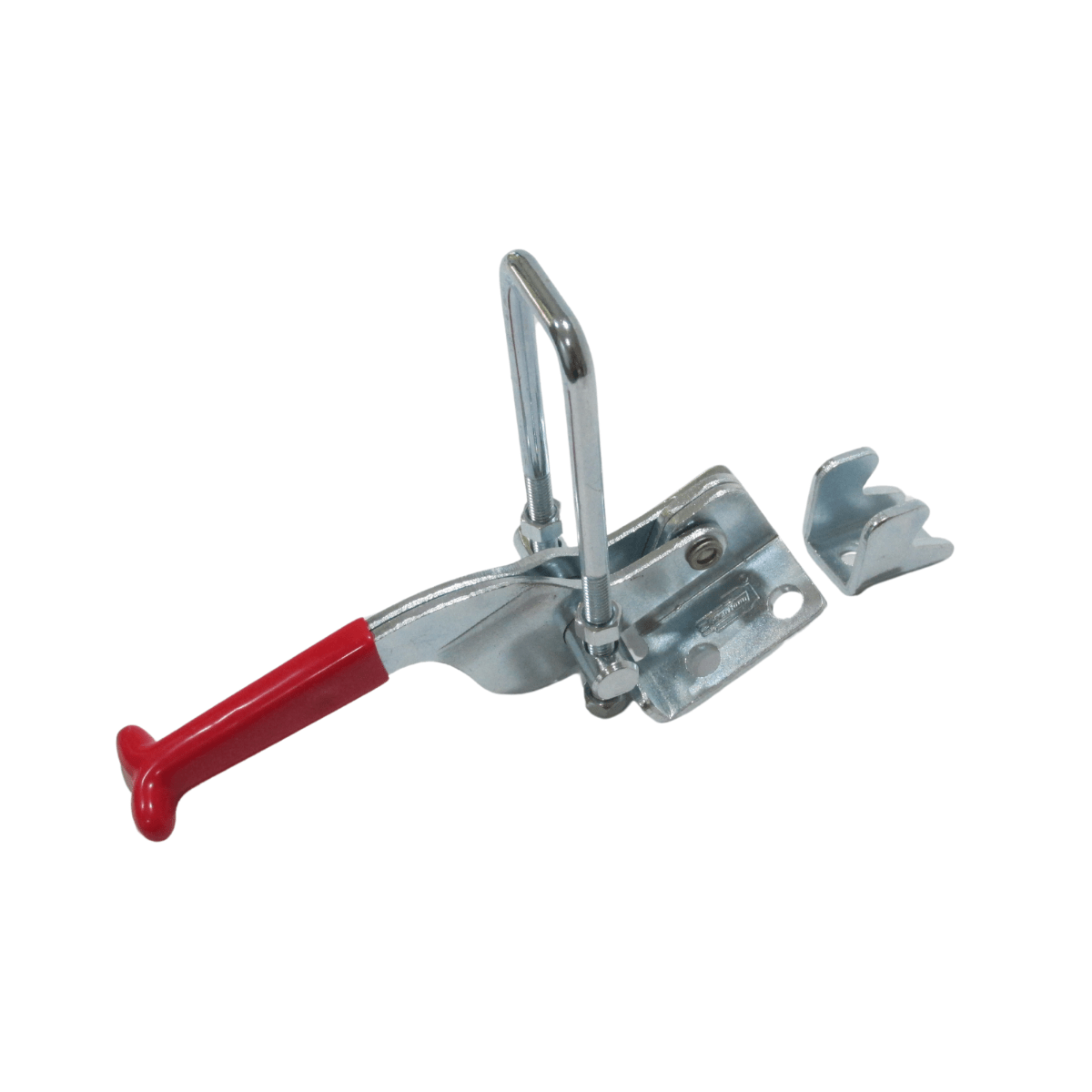

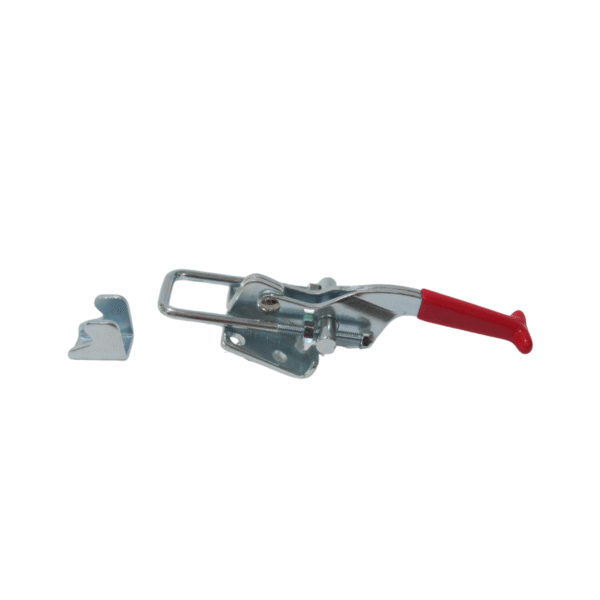

GH-40323

Series 431

– Supplied with latch plate and standard U-bolt
– Optional Long U-Bolts available

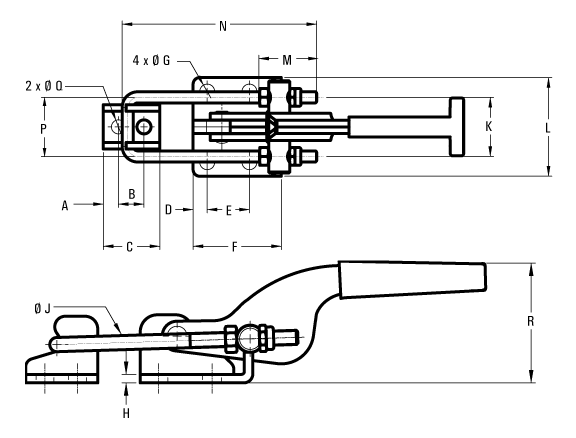

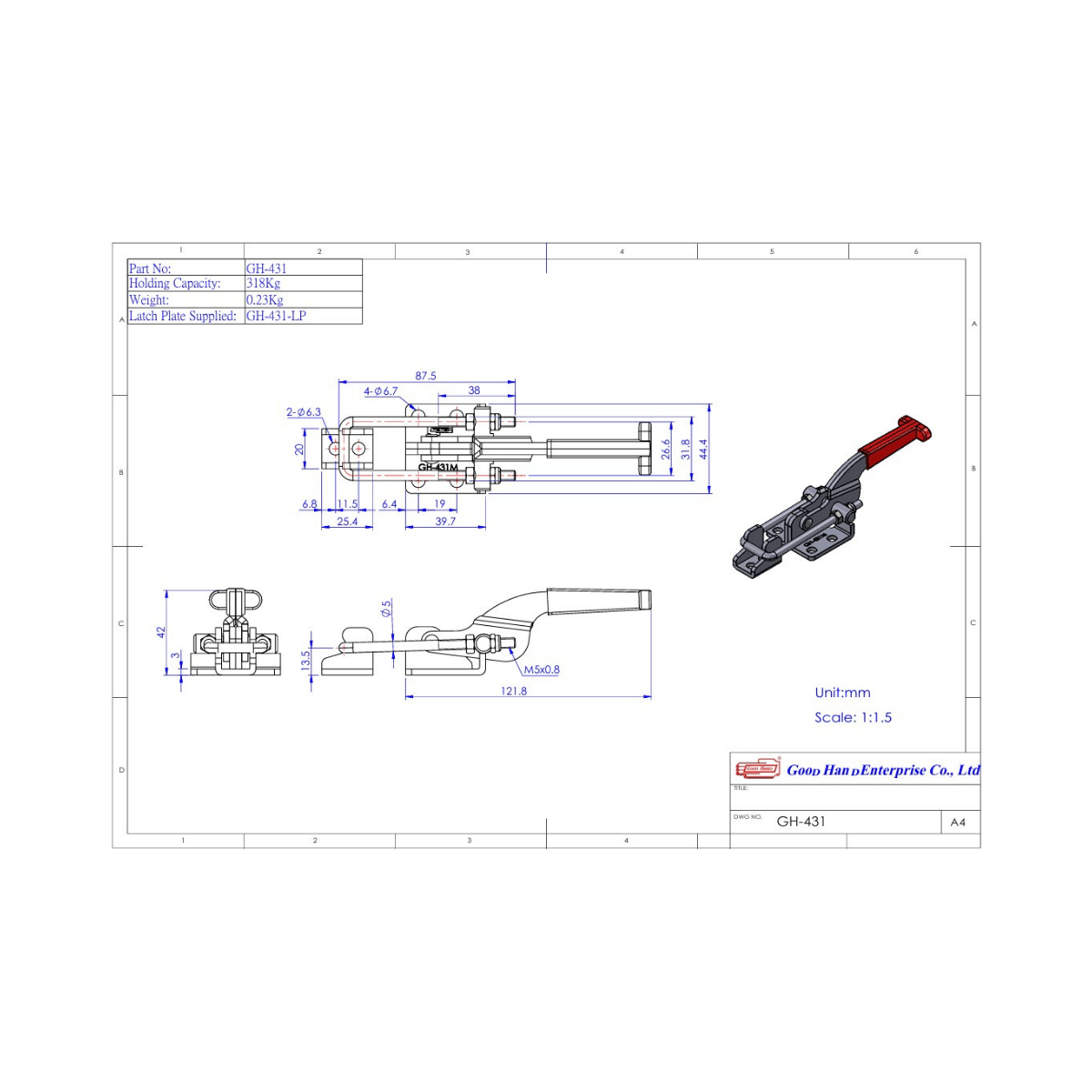

Model Number Holding Capacity A B C D E F G H J K L M N P Q R Weight CAD ( 3D | 2D )
GH-40323 360 LBS. (163 kg) 0.24 (6) 0.39 (9.9) 0.78 (19.8) 0.20 (5.2) 0.63 (15.9) 1.03 (26.2) 0.17 (4.4) 0.08 (2) 0.16 (4) 0.75 (19) 1.11 (28.2) 0.94 (24) 2.17 (55) 0.75 (19) 0.17 (4.4) 1.23 (31.3) 0.16 LB. (70 g) IGS | DWG
GH-40341 2,000 LBS. (900 kg) 0.37 (9.5) 0.75 (19.1) 1.50 (38.1) 0.37 (9.5) 1.63 (41.3) 2.37 (60.3) 0.34 (8.6) 0.16 (4) 0.31 (8) 1.75 (44.5) 2.13 (54) 2.05 (52) 4.50 (114.5) 1.50 (38.1) 0.33 (8.5) 3 (76.1) 1.5 LBS. (680 g) IGS | DWG
GH-431 700 LBS. (318 kg) 0.27 (6.8) 0.45 (11.5) 1″ (25.4) 0.25 (6.4) 0.75 (19) 1.56 (39.7) 0.26 (6.7) 0.12 (3) 0.20 (5) 1.05 (26.6) 1.75 (44.4) 1.50 (38) 3.44 (87.5) 1.25 (31.8) 0.25 (6.3) 1.67 (42.3) 0.50 LB. (225 g) IGS | DWG
Model Description CAD ( 3D )
GH-40323-SS Stainless Steel Model of GH-40323 IGS
GH-431-SS Stainless Steel Model of GH-431 IGS
GH-40341-SS Stainless Steel Model of GH-40341 IGS
